Name: Rotary Stone Washer Capacity 50 To 800 Tons Per Hour
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HYSC-Serie
Price: 65,350.00 USD
Availability: InStock

Zu Hause > produits > Stone & Sand Washing Line >

Rotary Stone Washer Capacity 50 To 800 Tons Per Hour

Stone Rotary Stone Washer

Rotary Stone Washer

Herkunftsort:

China

Markenname:

hengyang

Zertifizierung:

ISO9001

Modellnummer:

HYSC-Serie

Kontakt mit uns

Bitte um ein Angebot

Rotary Stone Washer Capacity 50 To 800 Tons Per Hour

Einzelheiten zum Produkt

Farbe:

Anpassen

Kapazität:

50 bis 800 t/h

Anwendung:

STEINreinigung

OEM:

akzeptieren

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

35000-95700USD/set

Verpackung Informationen

Verhandlung

Lieferzeit

15-20 Tage

Zahlungsbedingungen

T/T

Versorgungsmaterial-Fähigkeit

300 Sätze/Monat

VERWANDTE PRODUKTE

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Beste Preis erhalten

Customize PU Spiral Sand Washing Machinery

Beste Preis erhalten

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Beste Preis erhalten

Insutrial Use Rotary Screen Capacity 1-250t/h

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Rotary Stone Washer offer significant advantages with their trommel design that effectively combines washing and screening functions, delivering high production capacities ranging from 1 to 250 tons per hour while maintaining low operating costs, easy maintenance, and quiet operation. These versatile machines feature fully customizable specifications including drum length/diameter, screen mesh configuration, layer counts, liner plates, mobility options (portable or stationary), and drive tire materials to suit various applications – from small-scale gold wash plants to mini gold trommel operations. The system’s efficient washing is further enhanced by internal water spray pipes and smooth rubber-tired drive mechanisms for reliable performance.

✔ High Efficiency: Removes >80% of sludge, ideal for clay-rich ores.
✔ Robust Structure: Easy maintenance with wear-resistant linings for extended service life.
✔ Multifunctional: Combines washing, grading, and de-sliming, reducing downstream processing load.

Rotary Stone Washer Capacity 50 To 800 Tons Per Hour 0

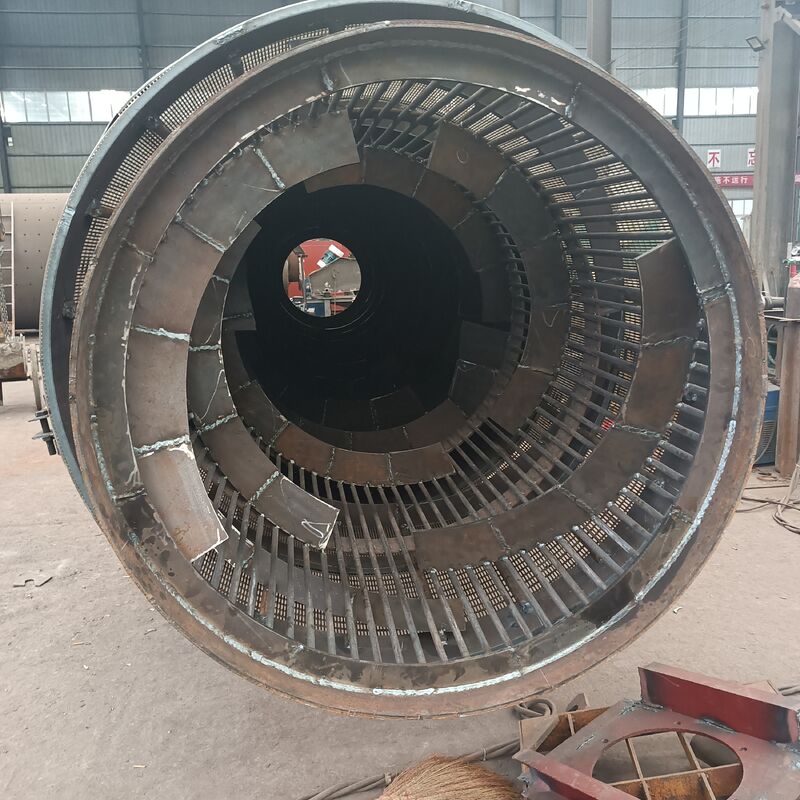

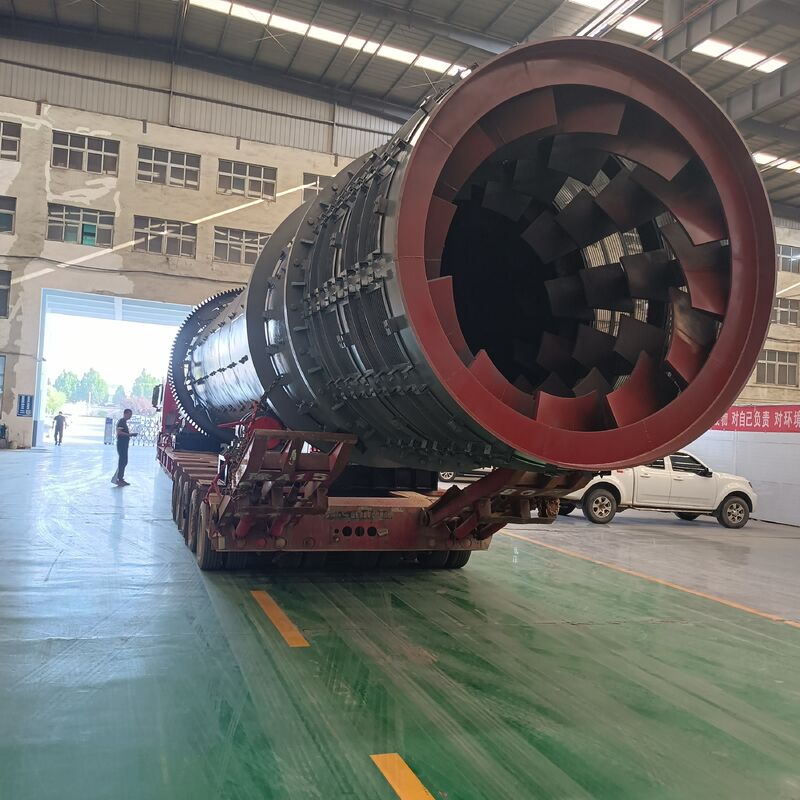

Hengyang Rotary Scrubbers are cylindrical drums with internal lifters, typically supported by trunnion rollers at either end. The continuous lifting and dropping action combined with water helps to abrade, scrub, and break down soluble contaminants. Optional trommel screen extensions can be added to provide rough product separation, screening and dewatering capabilities.

Technical Details

Model	Drum Dia (mm)	Drum & Screen Length (m)	Screen Mesh Size (mm)	Rotation Speed (r/min)	Feeding Size (mm)	Angle of Inclination(°)	Capacity (t/h)	Power (kW)
HYSC-400	400	2m+1.2m	≤20	27.9	≤80	≤10	1-5	3
HYSC-600	600	2m+1.2m	≤25	27.6	≤80	≤10	5-10	4
HYSC-750	750	2.5m+1.5m	≤25	27.6	≤100	≤10	10-20	5
HYSC-900	900	3m+1.8m	≤25	27.6	≤100	≤10	20-40	11
HYSC-1200	1200	4m+2m	≤25	17	≤100	≤10	40-70	15
HYSC-1500	1500	4m+2m	≤50	16	≤100	≤10	70-100	30
HYSC-1800	1800	4m+2m	≤50	16	≤100	≤10	100-150	18.5*2
HYSC-2100	2100	4m+2m	≤50	16	≤1000	≤10	150-200	22*2
HYSC-2400	2400	6m+2.5m	≤50	16	≤100	≤10	200-250	22*4
HYSC-2700	2700	6m+2.5m	≤50	16	≤100	≤10	250-270	55*2
HYSC-3000	3000	6m+2.5m	≤50	16	≤100	≤10	270-300	30*4
HYSC-3200	3200	6m+2.5m	≤50	16	≤100	≤10	300-340	37*4
HYSC-3400	3400	6m+2.5m	≤50	16	≤100	≤10	340-370	45*4
HYSC-3600	3600	6m+2.5m	≤50	16	≤100	≤10	370-400	55*4
