Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: TTS-Serie
Price: 33,850.00 USD
Availability: InStock

Zu Hause > produits > Stone & Sand Washing Line >

Metal Rotary Drum Screen

Rotary Drum Screen

Herkunftsort:

China

Markenname:

hengyang

Zertifizierung:

ISO9001

Modellnummer:

TTS-Serie

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Farbe:

Anpassen

Anwendung:

Waschen und Trennen

Material:

Stahl

Kapazität:

50-400t/h

OEM:

akzeptieren

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

12000-55700USD/set

Verpackung Informationen

Verhandlung

Lieferzeit

15-20 Tage

Zahlungsbedingungen

T/T

Versorgungsmaterial-Fähigkeit

300 Sätze/Monat

VERWANDTE PRODUKTE

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Beste Preis erhalten

Customize PU Spiral Sand Washing Machinery

Beste Preis erhalten

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Beste Preis erhalten

Insutrial Use Rotary Screen Capacity 1-250t/h

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

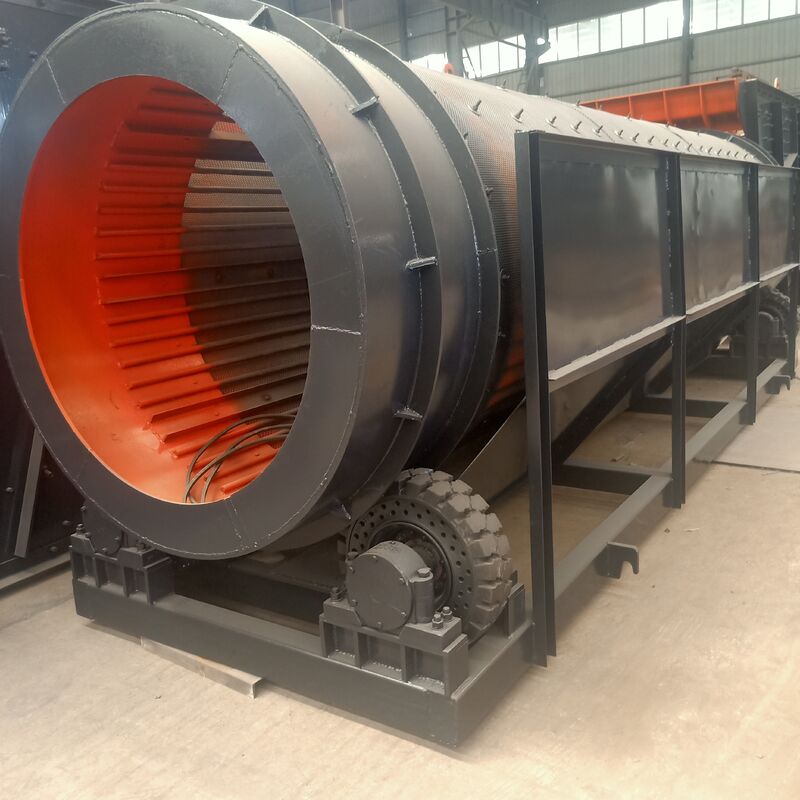

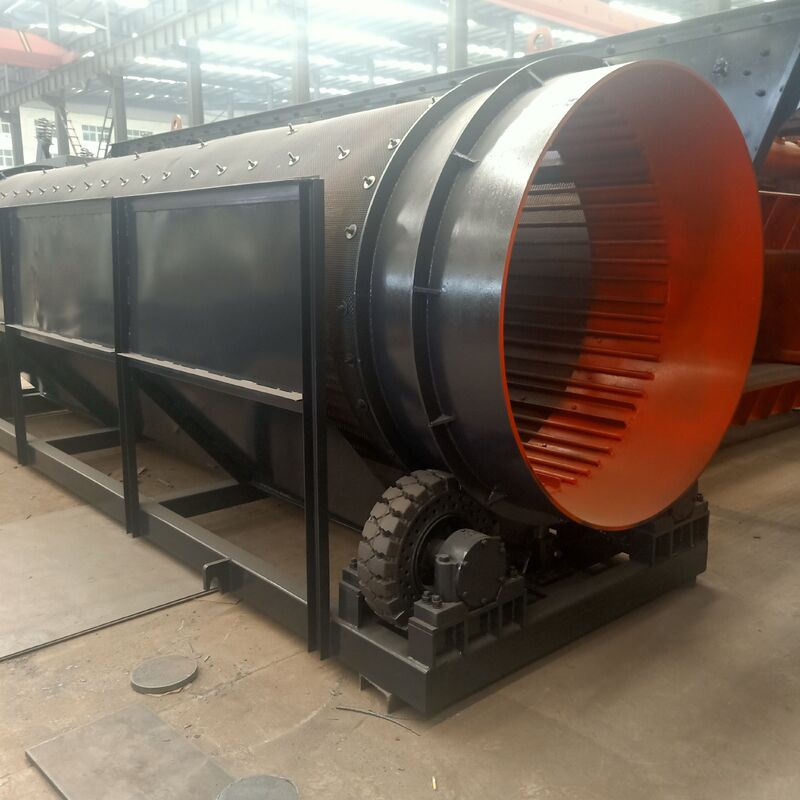

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11
