Name: Belt Conveyor
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: B-Typ-Förderer
Price: 8,650.00 USD
Availability: InStock

Zu Hause > produits > Maschine zum Füttern und transportieren >

Belt Conveyor

industrial belt conveyor machine

heavy duty belt conveyor

material handling belt conveyor

Herkunftsort:

China

Markenname:

hengyang

Zertifizierung:

ISO9001

Modellnummer:

B-Typ-Förderer

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Kapazität:

50-700t/h

Zustand:

Neu

OEM:

akzeptieren

Anwendung:

Transportmaterialien

Garantie:

12 Monate

Stromspannung:

Bis zum Käufer

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

5000-12300USD/set

Verpackung Informationen

Verhandlung

Lieferzeit

15-20 Tage

Zahlungsbedingungen

T/T

Versorgungsmaterial-Fähigkeit

300 Sätze/Monat

VERWANDTE PRODUKTE

Chain Conveying Feeder

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

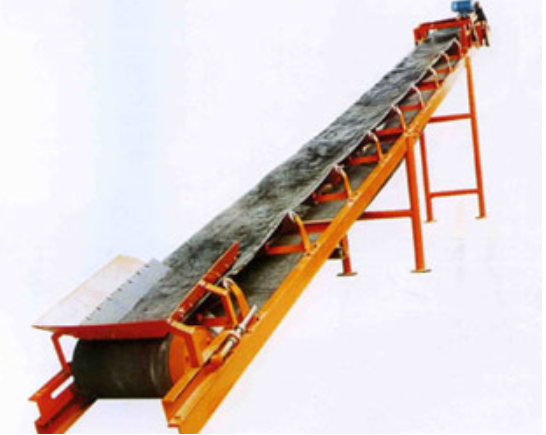

Belt Conveyor

Belt Conveyor is used to convey the loose and unit materials. All can be conveyed single or more machines ,according to the demands .As well as the conveyor system composition of the other conveyor equipments .That can meet all kinds of task .It is used in the scope that environment -45℃ to 46℃.the materials temperature less than 50℃.And it is widely used in mining ,metallurgy ,coal etc industries .

Working Principle Of Belt Conveyor:

When the Belt Conveyor is on operation ,through the friction between belt and transmission drum ,the belt then can move .From the loading point ,the materials is loading on the belt and then unloading from the unloading point.This can form the continuous logistics .Generally ,the materials are loading on the belt and then unloading from the transmission drum, as well as the special unloading equipment .

Characteristics Of Belt Conveyor:

Large delivery value ,simple structure ,convenient maintenance ,low cost and strong generality.

Technical Details:

Belt Width (mm)	Length(m) Power(kw)			Speed (m/s)	Production (t/h)
500	≤12 3	12-20 4-5.5	20-30 5.5-7.5	1.3-1.6	78-191
650	≤12 4	12-20 5.5	20-30 7.5-11	1.3-1.6	131-323
800	≤6 4	6-15 5.5	15-30 7.5-15	1.3-1.6	278-546
1000	≤105 5	10-207 5-11	20-40 11-22	1.3-2.0	435-853
1200	≤107 5	10-20 11	20-40 15-30	1.3-2.0	655-1284
